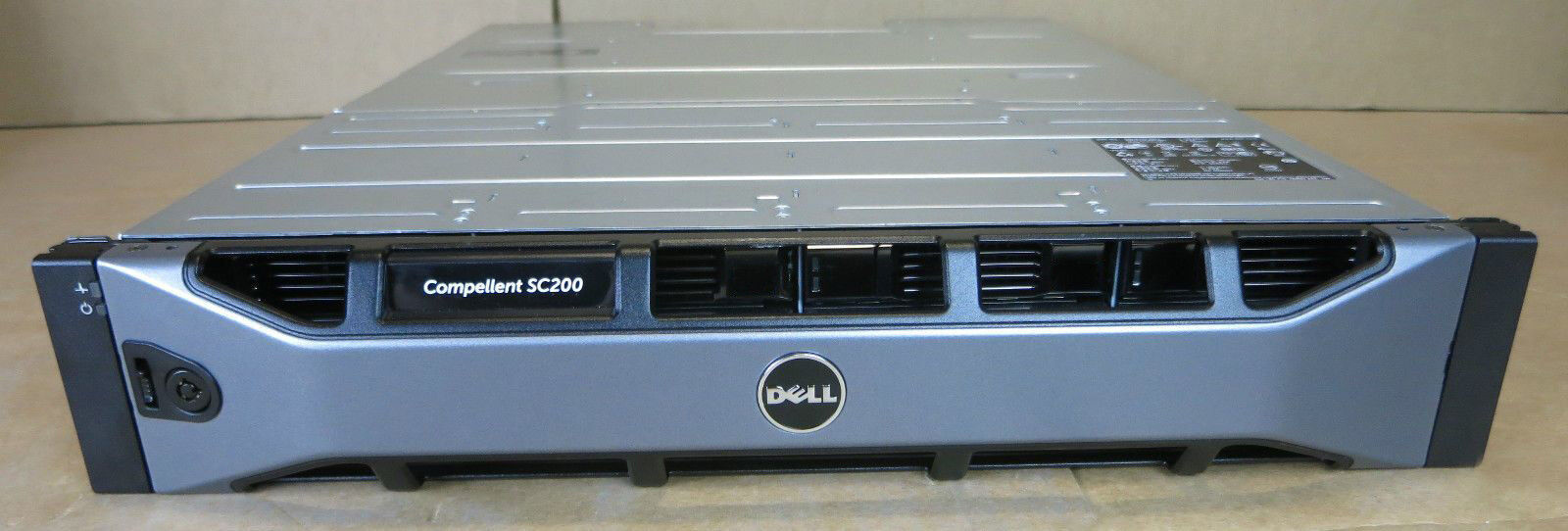

DELL Storage SC200 Data Storage System

The Dell Storage SC200 is a 2U expansion enclosure designed to scale the capacity of Dell Compellent Storage Center SANs. It provides a reliable and flexible way to increase storage space by adding up to 12 x 3.5-inch (LFF) drives per chassis. Supporting a 6Gb/s SAS interface, the SC200 allows for a mix of high-speed SSDs, performance-oriented 15K SAS drives, and high-capacity 7.2K NL-SAS drives within a single enclosure. With a maximum capacity of 48 TB per unit, it ensures enterprise-class availability through redundant, hot-swappable 700W power supplies. This enclosure is essential for businesses needing to grow their data footprint seamlessly while maintaining high performance.

Key Specifications:

• Form Factor: 2U Rackmount.

• Drive Count: Up to 12 x 3.5" LFF hot-plug drives.

• Connectivity: 6Gb/s SAS interface.

• Max Capacity: 48 TB per enclosure.

• Scalability: Part of a system scaling up to 960 drives total.

• Drive Types: SSD (200GB/400GB), SAS (15K RPM), and NL-SAS (7.2K RPM).

• Power: Dual redundant 700W AC power supplies (Hot-swappable).

• Mounting: Tool-less ReadyRails™ II for 4-post racks.
