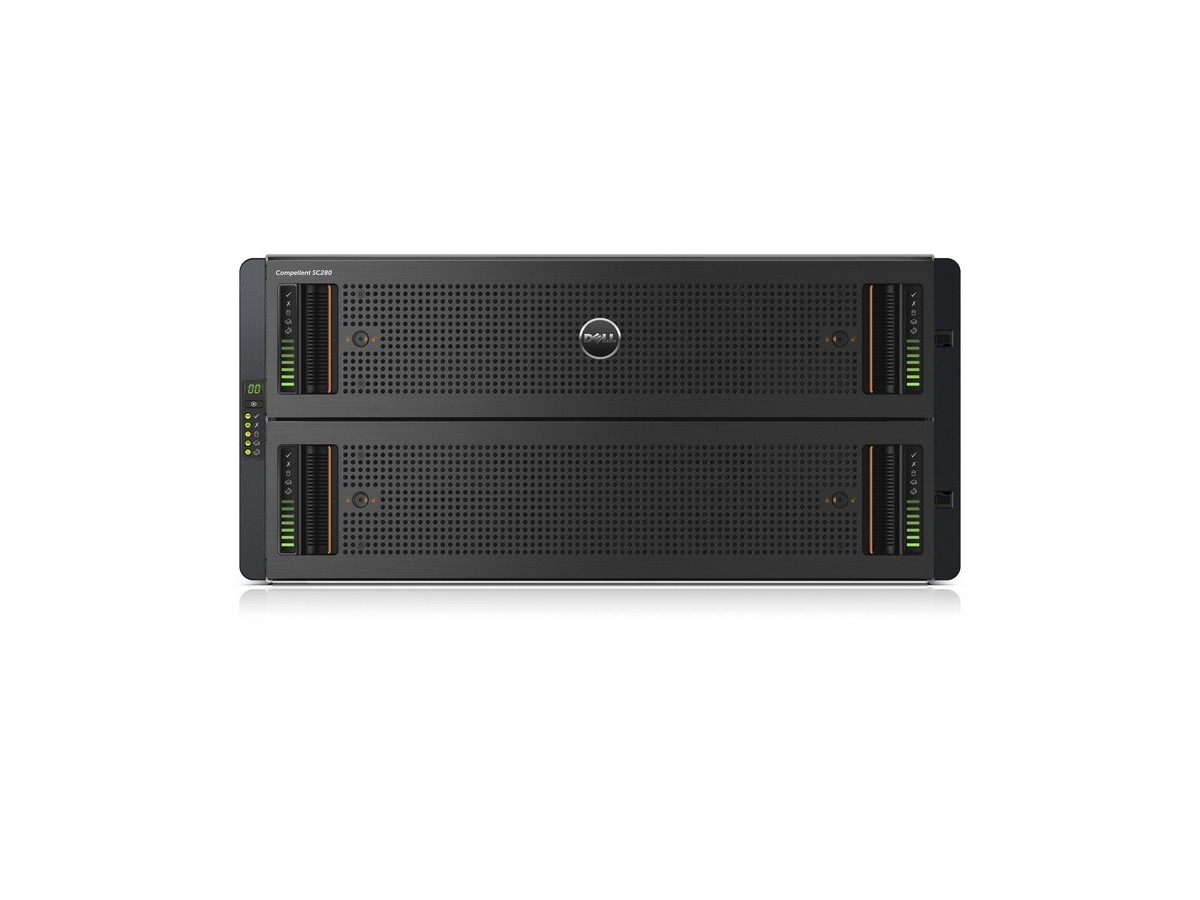

DELL Storage SC280 Data Storage System

The Dell Storage SC280 is an ultra-dense expansion enclosure designed specifically for the Dell Compellent SC8000 series. It sets a new standard for storage density, offering up to 2.8 times more capacity per rack unit than competing solutions. In a 5U chassis, the SC280 can house up to 84 x 3.5-inch SAS drives, delivering a massive 504 TB of raw storage per enclosure. This module is the ultimate platform for high-capacity SAN and NAS environments, large-scale replication, and big data workloads. By consolidating vast amounts of data into a single, high-density footprint, the SC280 significantly reduces the total cost of ownership and physical space requirements in the data center.

Key Specifications:

• Form Factor: 5U High-Density Rackmount.

• Drive Count: 42 or 84 x 3.5" hot-plug SAS drives (7.2K RPM).

• Max Capacity: 504 TB per chassis (using 6TB drives).

• Software Requirement: Storage Center 6.4 or later.

• Ideal for: Bulk storage, long-term archiving, and intensive replication environments.

• Weight: 130.7 kg (287.5 lbs) when fully loaded.

• Power: 2184W rated power supply with 208-240V AC support.
