24-port optical patch panel

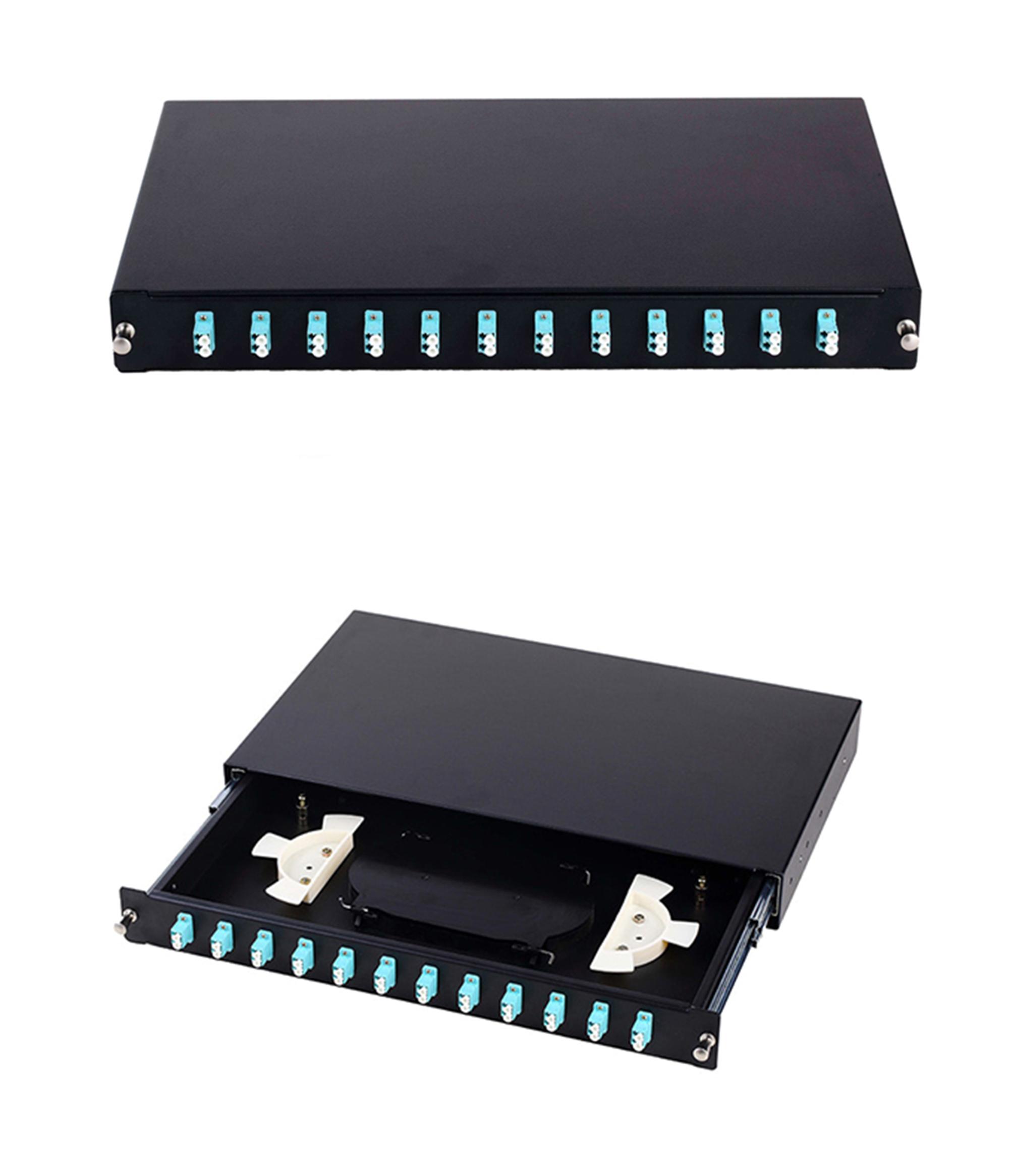

The 24-Port Optical Patch Panel (1U, 19-inch) is a standard rack-mount termination unit designed for splicing and managing up to 24 fiber strands (or up to 48 with LC Duplex adapters). This panel provides a central point for cross-connecting backbone cables to active networking hardware.

The chassis is engineered for superior cable management, featuring two entry ports (side and rear). Secure cable attachment is guaranteed by a multi-stage system: PG 13.5 strain relief boots, internal clamps for cable strength members, and additional metal hose clamps. Its modular design, with a detachable tray for splice cassettes, ensures easy adaptation to different network requirements and simplified maintenance.

Key Specifications:

• Form Factor: 1U Rackmount (19").

• Capacity: 24 ports (SC/FC) or 48 ports (LC).

• Cable Retention: Triple-fixation system (PG 13.5, strength member clamps, metal ties).

• Dimensions: 481 × 44 × 260 mm.

• Weight: 2.74 kg.
