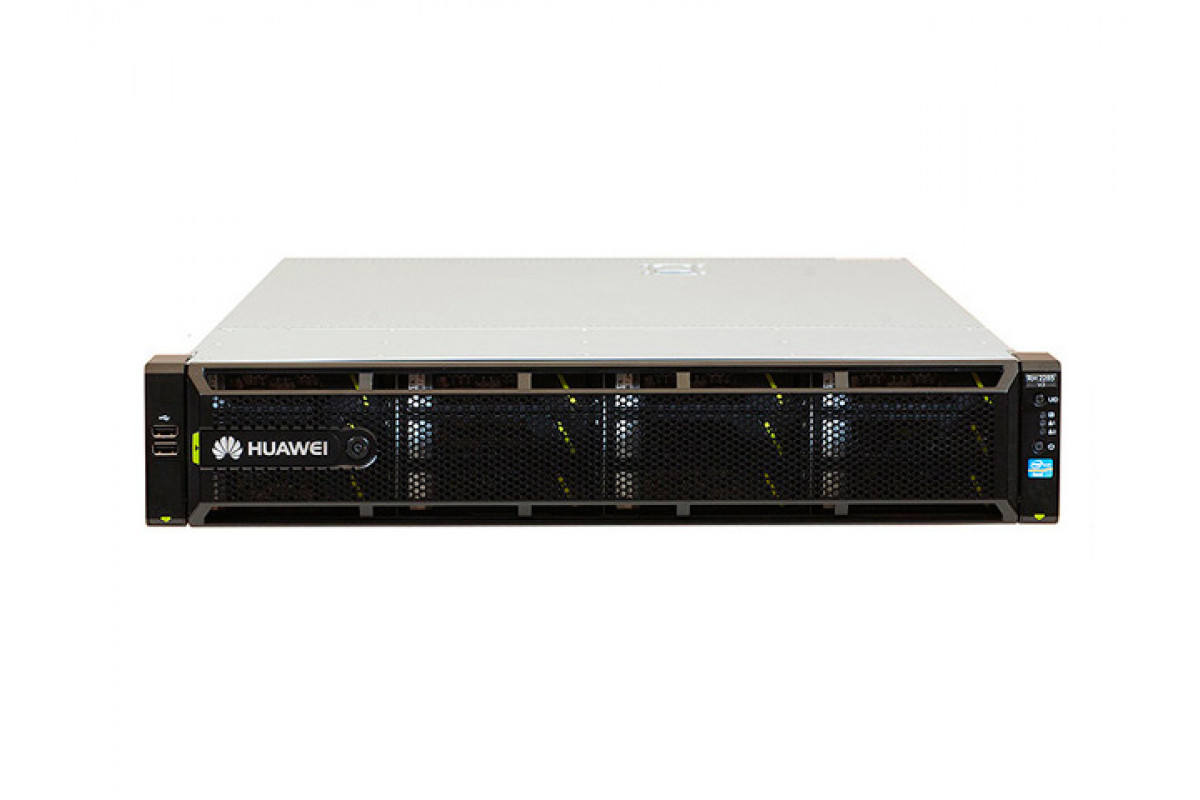

Huawei Tecal RH2285H V2 Server

The Huawei Tecal RH2285H V2 is a next-generation 2U rack server designed to provide an ideal hardware platform for Big Data and distributed storage applications. It supports up to two Intel® Xeon® E5-2400 v2 processors and features a flexible internal storage architecture that can accommodate up to 24 hot-swap drives. With a maximum memory capacity of 384 GB and high-efficiency power supplies (up to 94%, Platinum), the RH2285H V2 balances performance, scalability, and cost-effectiveness. It is highly manageable via the Huawei iMana system, ensuring reliable operation for mission-critical enterprise workloads.

Technical Specifications:

• Form Factor: 2U Rackmount.

• Processor Support: Dual Socket for Intel® Xeon® E5-2400 / E5-2400 v2 series.

• Memory Capacity: Max 384 GB LRDIMM or 192 GB RDIMM (12 slots).

• Storage Density: Options for 8x2.5", 12x3.5" (LFF), or 24x2.5" (SFF) drive bays.

• Expansion: Up to 5 PCIe slots (mix of Low Profile and Full Height).

• Networking: Dual-port Gigabit Ethernet (Intel i350).

• Management: Huawei iMana with dedicated management port and KVM-over-LAN.

• Power Supply: Redundant (1+1) hot-swap modules, including -48V DC options.
