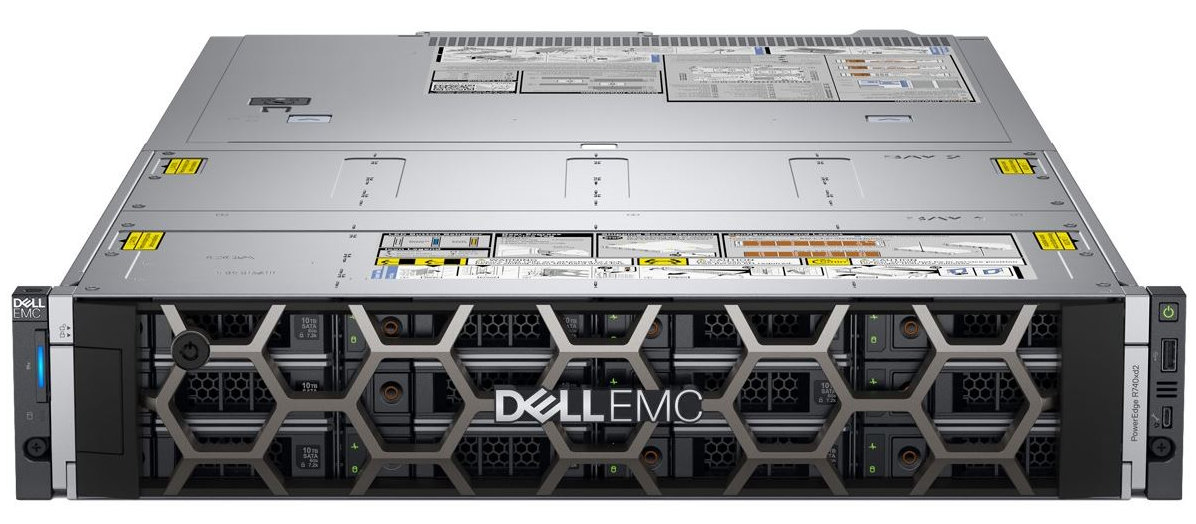

PowerEdge R740 Server

Dell EMC PowerEdge R740 is the general-purpose "workhorse" of the modern data center, optimized for workload acceleration. This 2-socket, 2U platform delivers an ideal balance of accelerator cards, storage, and compute resources. Supporting up to three 300W or six 150W GPUs, the R740 is an outstanding platform for Virtual Desktop Infrastructure (VDI), Artificial Intelligence (AI), and Machine Learning (ML). With its versatility and scalability, the R740 helps transform your IT infrastructure into a high-performance environment suitable for private clouds and software-defined storage (SDS).

Technical Specifications:

• Form Factor: 2U Rack.

• Processors: Up to 2 Intel Xeon Scalable processors (up to 28 cores per CPU).

• Accelerators (GPU): Up to 3 double-width (300W) or up to 6 single-width (150W) GPUs.

• Memory: 24 DDR4 DIMM slots (up to 3TB) and up to 12 NVDIMM modules.

• Storage: Up to 16 x 2.5" drives (60TB max) or up to 8 x 3.5" drives (96TB max).

• Storage Controller: PERC H330, H730P, H740P; BOSS subsystem (2 x M.2 SSDs).

• Networking: Network Daughter Card (NDC) options: 4x1GbE, 4x10GbE, or 2x25GbE.

• Management: iDRAC9 with Lifecycle Controller; Quick Sync 2 wireless module.
