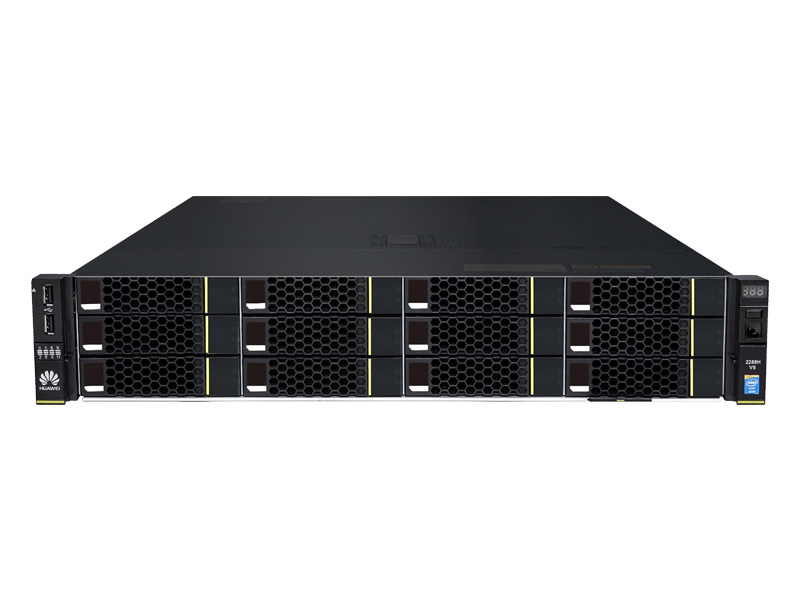

FusionServer 2288H V5 Rack Server

The Huawei FusionServer 2288H V5 is a highly versatile 2U, 2-socket rack server designed to meet diverse workload requirements, including cloud virtualization, HPC, and Big Data processing. Powered by Intel® Xeon® Scalable processors, it supports 24 DDR4 DIMMs and offers extraordinary storage flexibility, accommodating up to 31 x 2.5-inch drives or 28 NVMe SSDs. With patented Dynamic Energy Management Technology (DEMT) and Fault Diagnosis & Management (FDM) achieving 93% accuracy, the 2288H V5 balances high-performance computing with superior energy efficiency and simplified lifecycle management.

Technical Specifications:

• Form Factor: 2U Rackmount.

• Processors: Up to 2 x Intel® Xeon® Scalable Processors (up to 205W).

• Memory: 24 DDR4 DIMM slots, up to 3 TB capacity.

• Storage: Industry-leading density with support for 20 x 3.5" or 31 x 2.5" SAS/SATA drives; supports up to 28 NVMe SSDs.

• I/O Expansion: Up to 10 PCIe 3.0 slots for flexible scaling.

• Networking: FlexibleLOM (GE, 10 GE, 25 GE, 56G IB FDR).

• Management: Huawei iBMC, eSight, Smart Provisioning, and Agentless management.

• Reliability: ASHRAE A3/A4 compliant, operating up to 45°C.
