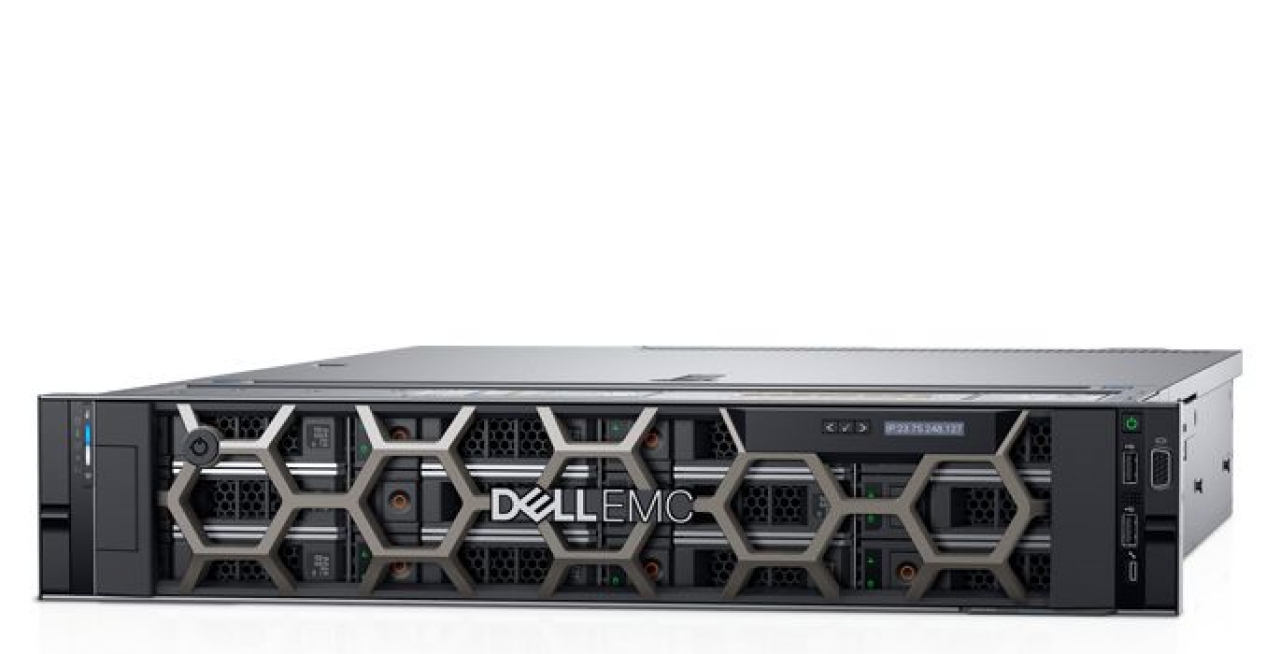

PowerEdge R540 Rack Server

Dell EMC PowerEdge R540 is a versatile 2-socket, 2U rack server designed to balance resources, expandability, and affordability. It is ideal for various applications including virtualization, email, messaging, and video streaming. With support for up to 14 x 3.5" drives, it provides significant storage scalability. Powered by Intel Xeon Scalable processors and featuring advanced automation via iDRAC9, the R540 is built to adapt to the changing needs of modern data centers while ensuring maximum uptime with minimum effort.

Technical Specifications:

• Form Factor: 2U Rack.

• Processors: Up to 2 Intel Xeon Scalable processors (up to 20 cores per CPU).

• Memory: 16 DDR4 DIMM slots, supports up to 1TB total.

• Storage: Up to 12 x 3.5" front bays + 2 x 3.5" rear bays (SAS/SATA), 196TB max.

• Storage Controller: PERC H330, H730P, H740P, HBA330, or software RAID S140.

• Networking: 2 x 1GbE LOM + optional 10GbE SFP+ or 10GBase-T daughter cards.

• Power Supply: Redundant hot-plug PSUs (ranging from 450W to 1100W).

• Management: iDRAC9 with Lifecycle Controller; optional Quick Sync 2.
