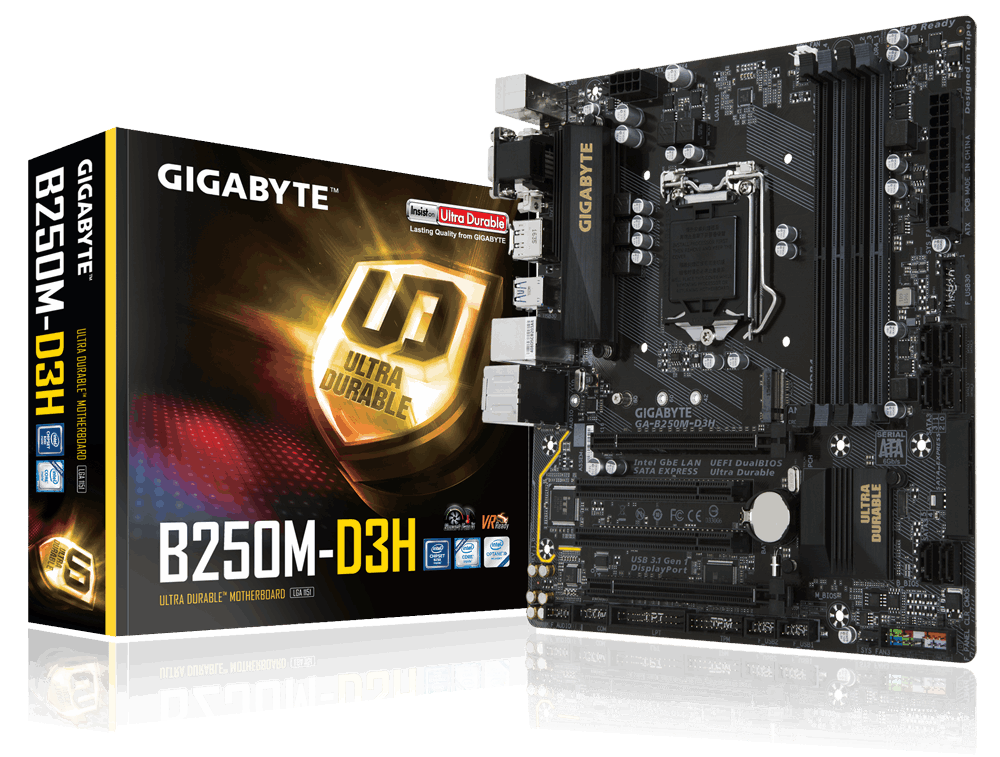

GigaByte GA-B250M-D3H DDR4
GigaByte GA-B250M-D3H DDR4 is a compact mATX motherboard based on the Intel B250 chipset, designed for 6th and 7th Gen Intel Core processors. Despite its smaller size, this board provides a comprehensive array of video outputs (VGA, DVI, HDMI, DisplayPort) and supports high-speed M.2 storage, making it a reliable and flexible solution for modern workstations.
Technical Specifications:
-
CPU Socket: Socket LGA1151 (supports 6th/7th Gen Intel Core).
-
Chipset: Intel B250.
-
RAM: 4 x DDR4 slots, supporting up to 64 GB.
-
Video Outputs: VGA, DVI, HDMI, DisplayPort (DP).
-
Expansion Slots: 2 x PCI-E 16x; 2 x PCI (legacy support).
-
Storage: 6 x SATA III ports; 1 x M.2 slot (NGFF, up to 32 Gb/s).
-
USB Interfaces: 4 x USB 3.0 ports, 2 x USB 2.0 ports.
-
Networking: Intel® GbE LAN controller.
-
Audio: 8-channel High Definition Audio (Realtek ALC892 codec).
-
Form Factor: mATX.
